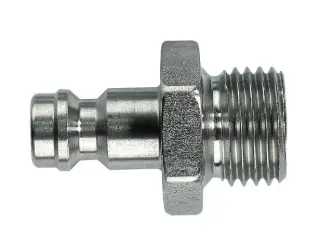

21SFAW10MXN
DESCRIPTION:
Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.
Technical Specifications
| Function: | Single Shut-Off |
| Connection Size: | G 1/8 |
| Body Material: | Brass |
| Coupling Half: | Plug |
| For Fluid Type: | Water (Industrial, drinking, treated water), Air & Neutral Gases (Industrial compressed, lubricated air, inert gases) |
| Weight: | 0.011 kg |
| Product Series: | Series 21 |
| Diameter: | 5 mm (nominal) |
| Flow Rate: | 550 L/min (air), 2.7 L/min (water) |
| Industry: | Electronics, General Industrial, Healthcare & Life Sciences |
| Interchange Type: | European Profile |
| Brand: | Parker, Rectus |
| Connection Size: | G 1/8 |
| Maximum Operating Temperature: | 240 °C, 464 °F |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Maximum Operating Pressure: | 35 bar, 507 psi |
| Compatible Fitting: | Series 21 Coupler |
| Shape: | Straight |
| Application: | Energy Management, Electronics, Industrial Machinery, Medical |
| Hex Size: | 14 mm |
| Product Type: | Pneumatic Quick Couplings |
| Connection Type: | Male, BSPP ISO 228 Parallel |
| Valve Included: | No |
| Technology: | Pneumatics, Fluid & Gas Handling |
| Function: | Straight-Through |
| Valve Type: | Without Valve |
| Sleeve Material: | Without Sleeve |
| Division: | Low Pressure Connectors Europe Division |
| Plating Type: | Nickel-plated |
| Body Material: | Brass |
| Operation Type: | No Sleeve |
| Region of Origin: | Germany |
| Product Style: | Quick-Connect |
| Quantity per Box: | 10 |
| Specifications Met: | ATEX, RoHS |
| Coupling Half: | Plug |
| Seal Material: | Without Seal |
| Connection Type: | Male BSPP |
