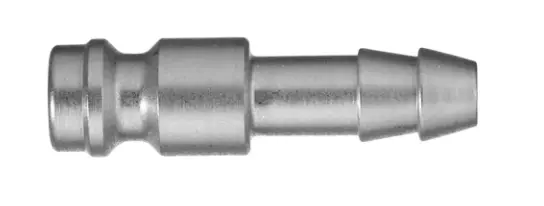

21SFTF08EXX
DESCRIPTION:
Quick coupling system with nominal diameter 5 for pneumatic, liquids and gas applications up to 35 bar. Available in brass, nickel-plated brass, or stainless steel.
TECHNICAL DESCRIPTION:
| Coupling Half: | Plug |
| Connection Size: | 8 MM |
| Function: | Single Shut-Off |
| Body Material: | Stainless Steel 316L |
| Weight: | 0.008 kg |
| Product Series: | Series 21 |
| Diameter: | 5 mm (nominal) |
| Flow Rate: | 550 L/min (air), 2.7 L/min (water) |
| Industry: | Electronics, General Industrial, Healthcare & Life Sciences |
| Brand: | Parker, Rectus |
| Connection Size: | 8 mm |
| Maximum Operating Temperature: | 240 °C, 464 °F |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Maximum Operating Pressure: | 35 bar, 507 psi |
| Shape: | Straight |
| Application: | Energy Management, Electronics, Industrial Machinery, Medical |
| Product Type: | Pneumatic Quick Couplings |
| Connection Type: | Hose Barb |
| Valve Included: | No |
| Technology: | Pneumatics, Fluid & Gas Handling |
| Function: | Straight-Through |
| Division: | Low Pressure Connectors Europe Division |
| Body Material: | Stainless Steel 316L |
| Product Style: | Quick-Connect |
| Quantity per Box: | 2 |
| Outside Diameter: | n/a mm |
| Coupling Half: | Plug |
| Connection Type: | Hose Barb |
