2240D-025V32
DESCRIPTION:

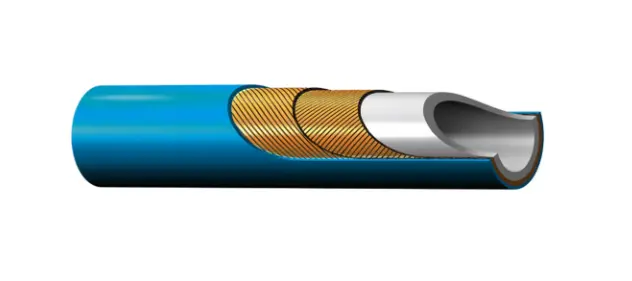

Parker High Pressure 2240D Hoses are developed for High and Ultra High Pressure applications, combining excellent handling and long service life with superior safety standards. For working pressure up to 120 MPa.
TECHNICAL DESCRIPTION:
| Hose Cover Type: | Standard Cover |
| Hose I.D. (inch): | 5/32 |
| Maximum Operating Temperature: | 70°C, 158°F |
| Hose I.D. (mm): | 4.0 |
| Cover Material: | Polyamide - Standard |
| Brand: | Parker |
| Media: | Petroleum Hydraulic Fluids, Water |
| Specifications Met: | DIN 1829-2 |
| Compatible Fitting: | TX Series |
| Inside Diameter: | 0.157 inch, 4 mm |
| Application: | Industrial Cleaning, Marine Cleaning, Water Jet Cutting |
| Hose Reinforcement Material: | 2 Spirals of High Tensile Steel Wire |
| Outside Diameter: | 0.157 inch, 7.7 mm |
| Division: | Polymer Hose Division Europe |
| Industry: | General Industrial, Marine |
| Technology: | Fluid & Gas Handling |
| Product Type: | Hydraulic Hose, Transfer Hose, Water Blast Hose, Water Hose |
| Maximum Operating Pressure: | 129 MPa, 17400 psi, 1290 bar |
| Minimum Bend Radius: | 75 mm, 2.953 inch |
| Design Factor: | 2.5:1 |
| Maximum Operating Temperature: | 158 °F, 70 °C |
| Minimum Operating Temperature: | 14 °F, -10 °C |
| Cover Material: | Polyamide (PA) |
| Hose Inner Tube Material: | Polyoxymethylene (POM) |
| Weight: | 0.10 kg/m, 0.07 lb/ft |
