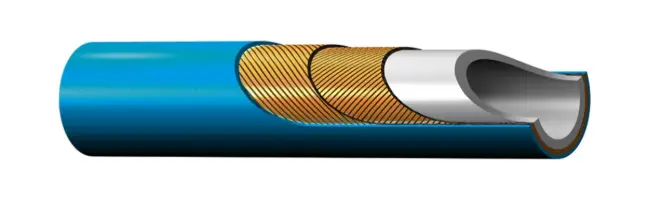

2240D-04V32
DESCRIPTION:
Parker High Pressure 2240D Hoses are developed for High and Ultra High Pressure applications, combining excellent handling and long service life with superior safety standards. For working pressure up to 120 MPa.
Technical Specifications
| Hose I.D. (inch): | 1/4 |
| Maximum Operating Temperature: | 70°C, 158°F |
| Hose I.D. (mm): | 6.4 |
| Hose Cover Type: | Standard Cover |
| Cover Material: | Polyamide - Standard |
| Brand: | Parker |
| Media: | Petroleum Hydraulic Fluids, Water |
| Specifications Met: | DIN 1829-2 |
| Compatible Fitting: | TX Series |
| Inside Diameter: | 1/4 inch, 6.4 mm |
| Application: | Industrial Cleaning, Marine Cleaning, Water Jet Cutting |
| Hose Reinforcement Material: | 2 Spirals of High Tensile Steel Wire |
| Outside Diameter: | 0.453 inch, 11.5 mm |
| Division: | Polymer Hose Division Europe |
| Industry: | General Industrial, Marine |
| Technology: | Fluid & Gas Handling |
| Product Type: | Hydraulic Hose, Transfer Hose, Water Blast Hose, Water Hose |
| Maximum Operating Pressure: | 110 MPa, 15950 psi, 1100 bar |
| Minimum Bend Radius: | 110 mm, 4.331 inch |
| Design Factor: | 2.5:1 |
| Maximum Operating Temperature: | 158 °F, 70 °C |
| Minimum Operating Temperature: | 14 °F, -10 °C |
| Cover Material: | Polyamide (PA) |
| Hose Inner Tube Material: | Polyoxymethylene (POM) |
| Weight: | 0.20 kg/m, 0.13 lb/ft |
