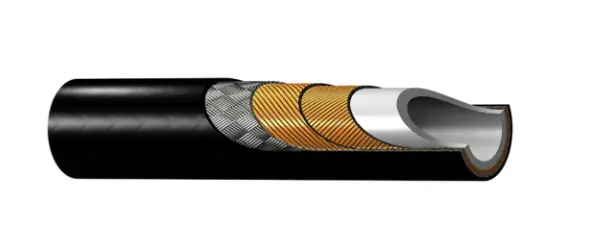

2245N-12V30
DESCRIPTION:
Parker 2245N Hoses are designed to match high demands in hydraulics or media transfer applications. They offer reliability, versatility and a high degree of customization and are ideal for production environments. For working pressure up to 45 MPa.
TECHNICAL DESCRIPTION:
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Size: | -12 |
| Brand: | Parker |
| Media: | Air (General Industrial Air), Chemicals (Methanol) - Check your fluid compatibility with our catalogue chart., Coolants, Lubricants, Petroleum Hydraulic Fluids, Water |
| Specifications Met: | DNV, SAE 100R9 |
| Compatible Fitting: | NX Series |
| Inside Diameter: | 3/4 inch, 19.6 mm |
| Maximum Operating Temperature: | 100 °C (short period 120°C), 212 °F (short period 248°F) |
| Application: | Industrial Hydraulics, Mobile Hydraulics |
| Hose Reinforcement Material: | 2 Spirals of High Tensile Steel Wire and 1 Braid of Steel Wire |
| Outside Diameter: | 1.122 inch, 28.5 mm |
| Division: | Polymer Hose Division Europe |
| Industry: | General Industrial, Off-road Machinery |
| Technology: | Fluid & Gas Handling |
| Product Type: | High Pressure Hose, Hydraulic Hose |
| Maximum Operating Pressure: | 4350 psi, 30 MPa, 300 bar |
| Minimum Bend Radius: | 240 mm, 9.803 inch |
| Design Factor: | 4:1 |
| Cover Material: | Polyamide (PA) |
| Hose Inner Tube Material: | Polyamide (PA) |
| Weight: | 0.92 kg/m, 0.62 lb/ft |
| Maximum Working Pressure (MPa): | 30 |
