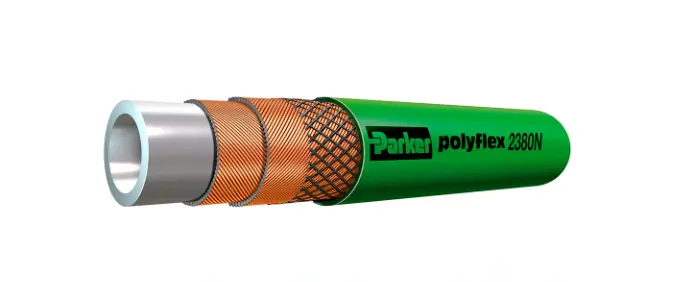

2380N-16V13
DESCRIPTION :
Parker 5,000 psi hose for hydraulic and subsea applications
TECHNICAL DESCRIPTION:
| Design Factor: | 4:1 |
| Specifications Met: | API 17E (1.5 design factor), ISO 13628-5 |
| Maximum Operating Pressure: | 5000 psi, 34.5 MPa, 345 bar |
| Maximum Operating Temperature: | 212 °F, 100 °C |
| Minimum Bend Radius: | 11-1/2 inch, 290 mm |
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Media: | Petroleum Hydraulic Fluids |
| Compatible Fitting: | E4 Series |
| Application: | Oil & Gas Hydraulic Systems, Subsea Control Lines, Portable Equipment |
| Weight: | 1 lb/ft, 1.49 kg/m |
| Inside Diameter: | 1 inch, 25.4 mm |
| Hose Inner Tube Material: | Polyamide 12 |
| Cover Material: | Polyurethane Sea Water Resistant |
| Outside Diameter: | 1.450 inch, 36.8 mm |
| Hose Reinforcement Material: | 2 Spirals and 2 Open Spirals of High Tensile Steel Wire |
| Product Style: | Subsea BOP Hose |
| Size: | -16 |
| Cover Color: | Green |
| Maximum Working Pressure (psi): | 5,000 |
| Hose I.D. (inch): | 1 |
