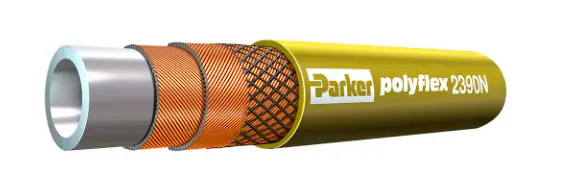

2390N-04V16
DESCRIPTION:
High Pressure Hydraulic Hose
TECHNICAL DESCRIPTION:
| Maximum Operating Pressure: | 7,000 psi |
| Application: | Hydraulic Systems, Subsea Control Lines, Oil & Gas, Portable Equipment, Subsea BOP |
| Design Factor: | 4:1 |
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Media: | Petroleum Hydraulic Fluids |
| Maximum Operating Pressure: | 7107 psi, 49 MPa, 490 bar |
| Maximum Operating Temperature: | 131 °F, 55 °C |
| Minimum Bend Radius: | 2-3/4 inch, 70 mm |
| Specifications Met: | ISO 13628-5 |
| Compatible Fitting: | E3 Series |
| Weight: | 0.17 lb/ft, 0.25 kg/m |
| Hose Reinforcement Material: | 2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire |
| Inside Diameter: | 1/4 inch, 6.4 mm |
| Hose Inner Tube Material: | Polyamide (PA) |
| Outside Diameter: | 0.520 inch, 13.3 mm |
| Cover Material: | Polyurethane Sea Water Resistant |
| Size: | -4 |
| Hose I.D. (size): | -4 |
| Cover Color: | Yellow |
