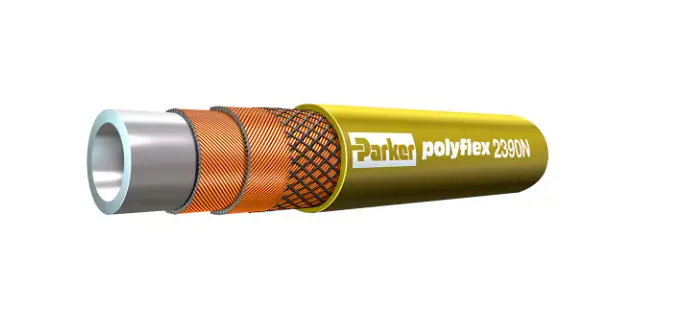

2390N-08V16
DESCRIPTION:
Parker 6,000 psi hydraulic hose for hydraulics and subsea control lines
TECHNICAL DESCRIPTION:
| Maximum Operating Pressure: | 6,000 psi |
| Application: | Hydraulic Systems, Subsea Control Lines, Oil & Gas, Portable Equipment, Subsea BOP |
| Design Factor: | 4:1 |
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Media: | Petroleum Hydraulic Fluids |
| Maximum Operating Pressure: | 6017 psi, 41.5 MPa, 415 bar |
| Maximum Operating Temperature: | 212 °F, 100 °C |
| Minimum Bend Radius: | 6 inch, 150 mm |
| Specifications Met: | ISO 13628-5 |
| Compatible Fitting: | 9X Series, E3 Series |
| Weight: | 0.36 lb/ft, 0.54 kg/m |
| Hose Reinforcement Material: | 2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire |
| Inside Diameter: | 1/2 inch, 12.7 mm |
| Outside Diameter: | 0.830 inch, 21.2 mm |
| Hose Inner Tube Material: | Polyamide 11, Methanol Washed |
| Cover Material: | Polyurethane |
| Size: | -8 |
| Hose I.D. (size): | -8 |
| Cover Color: | Yellow |
