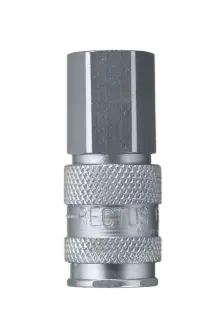

23KAIW17MPN
DESCRIPTION:
Quick coupling system with nominal diameter 5.5 mm for pneumatic applications up to 35 bar. Coupling system with a worldwide used ISO 6150 B profile. Available made of brass/steel.
TECHNICAL DESRIPTION:
| Coupling Half: | Coupler |
| Connection Size: | G 3/8 |
| Function: | Single Shut-Off |
| Connection Type: | Female BSPP |
| Body Material: | Brass |
| For Fluid Type: | Water (Industrial , drinking, treated water), Air & Neutral Gases (Industrial compressed, lubricated air, inert gases) |
| Weight: | 0.096 |
| Product Series: | Series 23 |
| Diameter: | 5.5 mm (nominal) |
| Flow Rate: | 960 L/min (air), 14 L/min (water) |
| Industry: | Industrial manufacturing equipment, Life & Sciences |
| Interchange Type: | ISO 6150 B Profile |
| Brand: | Parker, Rectus |
| Connection Size: | G 3/8 |
| Maximum Operating Temperature: | 100 °C, 212 °F |
| Minimum Operating Temperature: | -20 °C, -4 °F |
| Length: | 54 mm |
| Maximum Operating Pressure: | 35 bar, 508 psi |
| Application: | Pneumatic Power Tools, Assembly Lines, Air Compressors, Safety Respiratory Devices |
| Hex Size: | 19 mm |
| Product Type: | Pneumatic Quick Couplings |
| Connection Type: | Female, BSPP |
| Technology: | Pneumatics, Fluid & Gas Handling |
| Function: | Single Shut-Off |
| Valve Type: | High Flow Valve |
| Division: | Low Pressure Connectors Europe Division |
| Plating Type: | Nickel-Plated |
| Body Material: | Brass |
| Product Style: | Quick Connect |
| Quantity per Box: | 10 |
| Coupling Half: | Coupler |
| Seal Material: | NBR |
