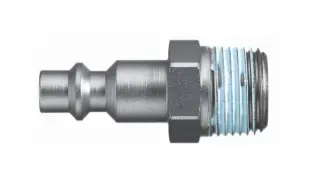

23SFAW13SXN
DESCRIPTION:
Quick coupling system with nominal diameter 5.5 mm for pneumatic applications up to 35 bar. Coupling system with a worldwide used ISO 6150 B profile. Available made of brass/steel.
TECHNICAL DESCRIPTION:
| Connection Type: | Male BSPP |
| Coupling Half: | Plug |
| Function: | Straight-Through |
| Connection Size: | G 1/4 |
| Body Material: | Steel |
| For Fluid Type: | Water (Industrial , drinking, treated water), Air & Neutral Gases (Industrial compressed, lubricated air, inert gases) |
| Product Series: | Series 23 |
| Industry: | Industrial manufacturing equipment, Life & Sciences |
| Interchange Type: | ISO 6150 B Profile |
| Brand: | Parker, Rectus |
| Connection Size: | G 1/4 |
| Maximum Operating Temperature: | 240 °C, 464 °F |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Length: | 42 mm |
| Maximum Operating Pressure: | 35 bar, 508 psi |
| Application: | Pneumatic Power Tools, Assembly Lines, Air Compressors, Safety Respiratory Devices |
| Hex Size: | 22 mm |
| Product Type: | Pneumatic Quick Couplings |
| Connection Type: | Male, BSPP |
| Valve Included: | No |
| Technology: | Pneumatics, Fluid & Gas Handling |
| Function: | Straight-Through |
| Division: | Low Pressure Connectors Europe Division |
| Plating Type: | Nickel-Plated |
| Body Material: | Steel |
| Region of Origin: | Germany |
| Product Style: | Quick Connect |
| Quantity per Box: | 10 |
| Outside Diameter: | n/a |
| Hose Inside Diameter: | n/a |
