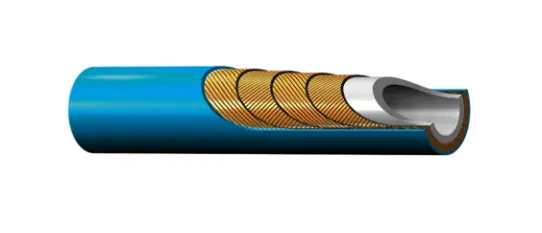

2440D-03V32
DESCRIPTION:
This product is no longer available – please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.
TECHNICAL DESCRIPTION:
| Hose Cover Type: | Tough Cover |
| Cover: | Tough Cover |
| Hose I.D. (mm): | 4.8 |
| Brand: | Parker |
| Media: | Petroleum Hydraulic Fluids, Water |
| Specifications Met: | DIN 1829-2 |
| Compatible Fitting: | LX Series |
| Inside Diameter: | 3/16 inch, 4.8 mm |
| Application: | Industrial Cleaning, Marine Cleaning, Water Jet Cutting |
| Hose Reinforcement Material: | 4 Spirals of Maximum Tensile Steel Wire |
| Outside Diameter: | 0.453 inch, 11.6 mm |
| Division: | Polymer Hose Division Europe |
| Industry: | General Industrial, Marine |
| Technology: | Fluid & Gas Handling |
| Product Type: | Hydraulic Hose, Transfer Hose, Water Blast Hose, Water Hose |
| Maximum Operating Pressure: | 26100 psi, 180 MPa, 1800 bar |
| Minimum Bend Radius: | 130 mm, 5.118 inch |
| Design Factor: | 2.5:1 |
| Maximum Operating Temperature: | 70 °C, 158 °F |
| Minimum Operating Temperature: | 14 °F, -10 °C |
| Cover Material: | Polyamide (PA) |
| Hose Inner Tube Material: | Polyoxymethylene (POM) |
| Weight: | 0.28 kg/m, 0.19 lb/ft |
| Maximum Working Pressure (MPa): | 180 |
