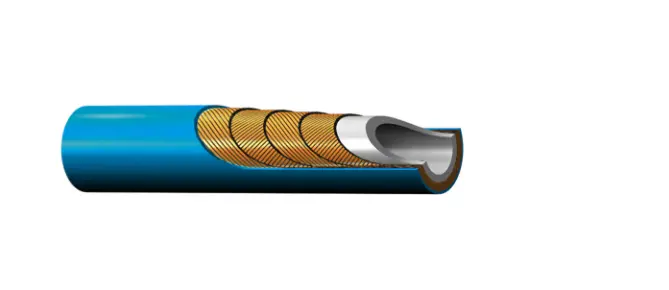

2440D-4V32
DESCRIPTION:
Parker High Pressure 2440D Hoses are developed for High and Ultra High Pressure applications, combining excellent handling and long service life with superior safety standards. For working pressure up to 220 MPa.
TECHNICAL DESCRIPTION:
| Cover: | Standard |
| Hose I.D. (mm): | 6.4 |
| Brand: | Parker |
| Media: | Petroleum Hydraulic Fluids, Water |
| Specifications Met: | DIN 1829-2 |
| Compatible Fitting: | LX Series |
| Inside Diameter: | 1/4 inch, 6.4 mm |
| Application: | Industrial Cleaning, Marine Cleaning, Water Jet Cutting |
| Hose Reinforcement Material: | 4 Spirals of Maximum Tensile Steel Wire |
| Outside Diameter: | 0.492 inch, 12.6 mm |
| Division: | Polymer Hose Division Europe |
| Industry: | General Industrial, Marine |
| Technology: | Fluid & Gas Handling |
| Product Type: | Hydraulic Hose, Transfer Hose, Water Blast Hose, Water Hose |
| Maximum Operating Pressure: | 23780 psi, 164 MPa, 1640 bar |
| Minimum Bend Radius: | 155 mm, 6.102 inch |
| Design Factor: | 2.5:1 |
| Maximum Operating Temperature: | 70 °C, 158 °F |
| Minimum Operating Temperature: | 14 °F, -10 °C |
| Cover Material: | Polyamide (PA) |
| Hose Inner Tube Material: | Polyoxymethylene (POM) |
| Weight: | 0.33 kg/m, 0.22 lb/ft |
| Maximum Working Pressure (MPa): | 164 |
