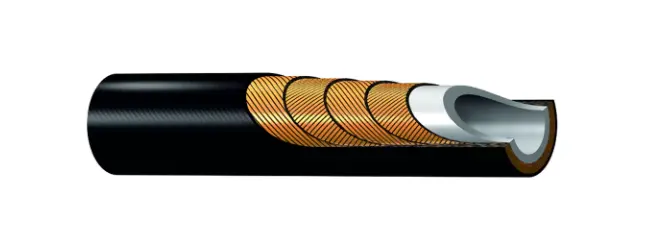

2440NC9C9252512-1300
DESCRIPTION:
Parker High Pressure 2440N Hoses are developed for High and Ultra High Pressure applications, combining excellent handling and long service life with superior safety standards. For working pressure up to 140 MPa.
TECHNICAL DESCRIPTION:
| Weight: | 0.49 to 2.55 lb/ft, 0.73 to 3.80 kg/m |
| Industry: | General Industrial, Marine |
| Hose Inner Tube Material: | Polyamide (PA) |
| Brand: | Parker |
| Maximum Operating Temperature: | 158 °F, 70 °C |
| Minimum Operating Temperature: | -10 °C, 14 °F |
| Maximum Operating Pressure: | 13050 to 20300 psi, 900 to 1400 bar, 90.0 to 140.0 MPa |
| Application: | Hydraulic Hose, Transfer Hose, Water, Waterblasting |
| Product Type: | Hydraulic Hose, Transfer Hose, Water Blast Hose, Water Hose |
| Technology: | Fluid & Gas Handling |
| Cover Material: | Polyamide (PA) |
| Division: | Polymer Hose Division Europe |
| Minimum Bend Radius: | 190 to 400 mm, 7.480 to 15.748 inch |
| Materials of Construction: | Thermoplastic |
| Media: | Petroleum Hydraulic Fluids |
| Specifications Met: | DIN 1829-2 |
| Inside Diameter: | 3/8 to 1-1/4 inch, 9.8 to 32.2 mm |
| Hose Reinforcement Material: | 4 Spirals of Maximum Tensile Steel Wire |
| Outside Diameter: | 0.768 to 2.185 inch, 19.5 to 55.5 mm |
