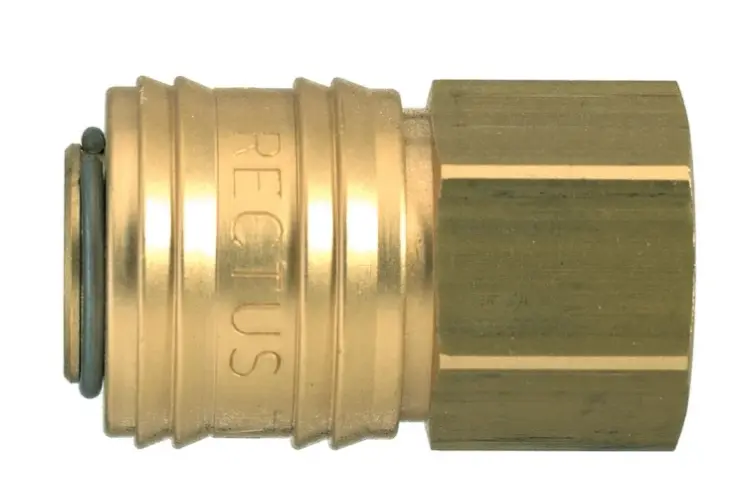

26KAIW13MPN
DESCRIPTION:
The Legris Basic Quick Coupling from Series 26 is an universal brass coupling with European standard industrial profile. It is a coupling system with single hand operation and standard valve as well as a small mass size. The ergonomic sleeve design prevents dirt on the valve body.
TECHNICAL DESCRIPTION:
| Function: | Single Shut-Off |
| Connection Size: | G 1/4 |
| Body Material: | Brass |
| Coupling Half: | Coupler |
| For Fluid Type: | Air & Neutral Gases (Industrial compressed, lubricated air) |
| Weight: | 0.0892 kg |
| Product Series: | Series 26 |
| Diameter: | 7.2 mm (nominal) |
| Flow Rate: | 1070 L/min (air) |
| Industry: | Transportation, Healthcare & Life Sciences, General Industrial |
| Interchange Type: | European Profile |
| Maximum Operating Temperature: | 100 °C, 212 °F |
| Connection Size: | G 1/4 |
| Brand: | Parker, Rectus |
| Minimum Operating Temperature: | -4 °F, -20 °C |
| Maximum Operating Pressure: | 35 bar, 507 psi |
| Compatible Fitting: | Series 26 Plug |
| Application: | Food & Beverages, Air & Gas Compressor, Mobile & Defence, Trucks & Trailers |
| Connection Type: | Female, BSPP |
| Product Type: | Pneumatic Quick Couplings |
| Valve Included: | Yes |
| Technology: | Pneumatics |
| Function: | Single Shut-Off |
| Sleeve Material: | Brass |
| Valve Type: | Standard Valve |
| Plating Type: | Nickel-Plated |
| Division: | Low Pressure Connectors Europe Division |
| Body Material: | Brass |
| Operation Type: | Sleeve |
| Region of Origin: | Germany |
| Quantity per Box: | 10 |
| Product Style: | Quick-Connect |
| Coupling Half: | Coupler |
| Seal Material: | NBR |
| Connection Type: | Female BSPP |
