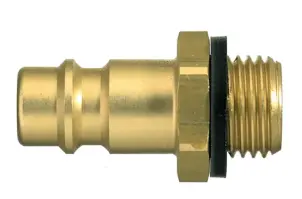

26SFAW13MXX
DESCRIPTION:
Quick coupling system with nominal diameter 7.2 for pneumatic applications up to 35 bar. Available in brass sleeve or polymer.
Technical Specifications
| Function: | Single Shut-Off |
| Body Material: | Brass |
| Connection Size: | G 1/4 |
| Coupling Half: | Plug |
| For Fluid Type: | Air & Neutral Gases (Industrial compressed, lubricated air) |
| Weight: | 0.02 kg |
| Product Series: | Series 26 |
| Diameter: | 7.2 mm (nominal) |
| Flow Rate: | 1070 L/min (air) |
| Industry: | General Industrial, Healthcare & Life Sciences, Transportation |
| Interchange Type: | European Profile |
| Brand: | Parker, Rectus |
| Connection Size: | G 1/4 |
| Maximum Operating Temperature: | 200 °C, 392 °F |
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Length: | 33 mm |
| Maximum Operating Pressure: | 35 bar, 507 psi |
| Compatible Fitting: | Series 26 Coupler |
| Application: | Food & Beverages, Air & Gas Compressor, Industrial Machinery, Safety & Rescue, Mobile & Defence, Trucks & Trailers |
| Hex Size: | 17 mm |
| Product Type: | Pneumatic Quick Couplings |
| Connection Type: | Male, BSPP |
| Technology: | Pneumatics |
| Function: | Straight-Through |
| Sleeve Material: | Without Sleeve |
| Valve Type: | Without Valve |
| Division: | Low Pressure Connectors Europe Division |
| Plating Type: | Without Surface Treatment |
| Body Material: | Brass |
| Operation Type: | No Sleeve |
| Region of Origin: | Germany |
| Product Style: | Quick-Connect |
| Quantity per Box: | 10 |
| Coupling Half: | Plug |
| Seal Material: | Without Seal |
| Valve Included: | No |
| Connection Type: | Male BSPP |
