2L34F10
DESCRIPTION:

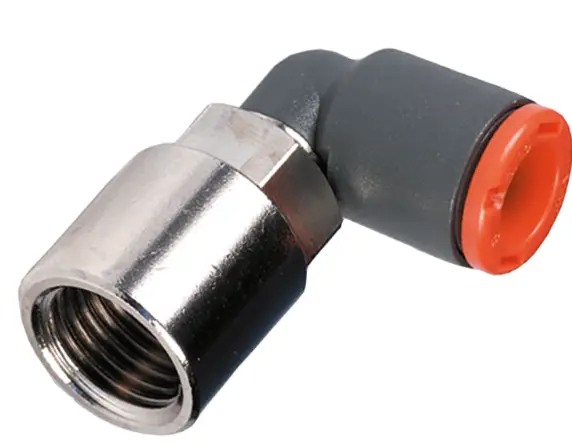

Metal Work Pneumatic 2L34F10 is a 90° female swivel elbow push-in fitting from the Metal Work "R" series. It is designed to connect an 8 mm pneumatic tube to a 1/4" BSPP female threaded port, allowing compact and flexible routing of compressed air lines in pneumatic systems. The fitting features a techno polymer body with an NBR seal for reliable sealing and easy installation. turn1search16.
Technical Description
| Parameter | Specification |
|---|---|
| Manufacturer | Metal Work Pneumatic |
| Part Number | 2L34F10 |
| Series | RL34/F (R Series) |
| Fitting Type | 90° Female Swivel Elbow |
| Tube Connection Size | 8 mm OD Push-in Tube |
| Thread Size | 1/4" BSPP Female Thread |
| Thread Type | Cylindrical Gas Thread (BSPP) |
| Body Material | Technopolymer |
| Seal Material | NBR (Nitrile Rubber) |
| Operating Pressure | -0.99 to 12 bar |
| Operating Temperature | -20°C to +60°C |
| Functional Denomination | Revolving Female L Fitting |
| Media | Compressed Air, Vacuum |
| EAN Code | 8024986211283 |
