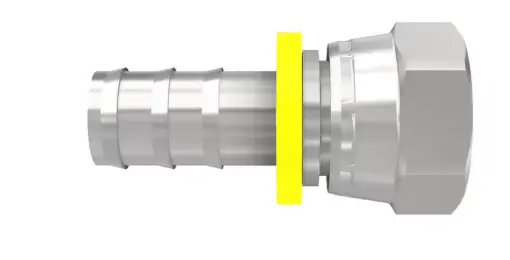

30682-4-4B
DESCRIPTION:
Configure hose assemblies quickly and easily in the field without special tools with Parker’s 82 series one-piece, push-on field-attachable hydraulic fittings.
Technical Specifications
| Connection 2 Type: | Female JIC 37°/SAE 45° Dual Flare - Swivel |
| Hose I.D. (size): | -4 |
| Body Material: | Brass |
| For Fluid Type: | Air (General Industrial Air), Coolants (Glycol), Fuels - Check fuel type with our catalogue chart., Lubricants (Oils), Petroleum Hydraulic Fluids (Petroleum & Water-Glycol Base), Water |
| Product Type: | Push-Lok Hose Fittings, Barbed Fittings |
| Shape: | Straight |
| Brand: | Parker |
| Connection 2 Type: | Female, JIC 37°, Swivel |
| Shape: | Straight |
| Division: | Polymer Hose Division Europe |
| Port Connection: | 7/16" |
| Industry: | Industrial Manufacturing Equipment |
| Port Type: | DKJ |
| Hex Type: | Inch |
| Application: | Machine Tools, Injection Moulding Machines, Paper Machines, Transfer Lines |
| Specifications Met: | ISO 12151-5-SWS |
| Technology: | Fluid & Gas Handling |
| Connection 2 Size: | 7/16"-20 inch Thread |
| Body Material: | Brass |
| Maximum Operating Pressure: | 41.0 MPa, 410 bar |
| Connection 1 Size: | 6.4 mm Hose I.D., 1/4 inch Hose I.D., -4 (Size) |
| Connection 1 Type: | Hose |
| Connection Length: | 19 mm (see drawing legend B) |
| Hex Size: | 9/16 inch (see drawing legend W) |
| Fitting Length: | 39 mm (see drawing legend A) |
