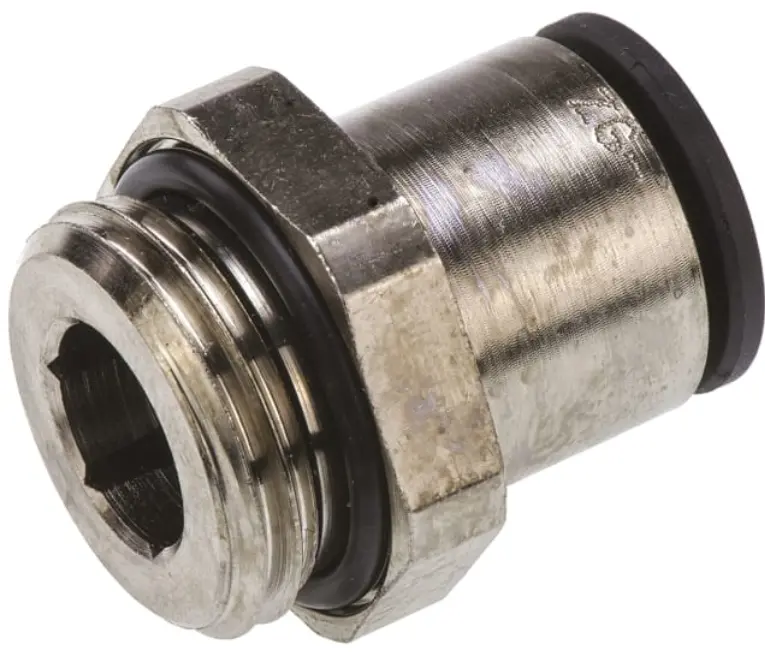

3101 12 21

DESCRIPTION:

A high-quality polymer push in fitting suitable for compressed air applications. The LF3000 fittings can be used in systems with a working pressure from a vacuum of 0.9 bar to a positive pressure of 20 bar. These fittings are suitable for use with all plastic pneumatic plastic tubing and are 100% leak tested during manufacture.

The 3101 fittings allow plastic pneumatic tubing to be connected to threaded ports. They can be tightened with a socket wrench or adjusted using an Allen key internally.

TECHNICAL DESCRIPTION:

Brand: - Legris

Product Type: - Pneumatic Fitting

Connection Thread Size: - 1/2 in

Connection Thread Standard: - G

Series: - LF3000

Connection Gender: - Male

Tube Connection Type: - Push-in

Tube Connection Size: - 12mm

Material: - Nickel Plated Brass

Maximum Operating Temperature: - 80°C

Standards/Approvals: - ISO

Finish: - Nickel
