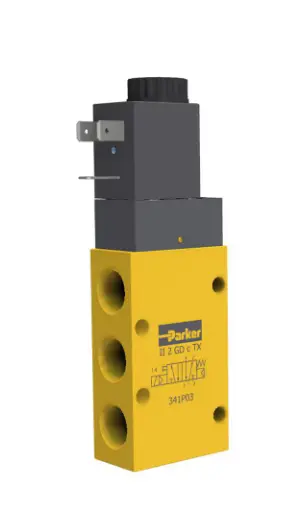

341P03-496131C2
DESCRIPTION:
P Series of Heavy Duty Ported Spool valves is a full range of indirect operated valves, solenoid or air operated, delivering a borad range of functions including 3/2, 5/2, 5/3.
TECHNICAL DESCRIPTION:
| Port Size: | 1/4" G |
| Maximum Operating Pressure: | 2.5 bar |
| Maximum Fluid Temperature: | +50°C |
| Specifications Met: | - |
| Power Supply Voltage: | 3 W |
| Orifice Size: | 7 mm |
| Minimum Fluid Temperature: | -10°C |
| Function: | Normally Closed |
| Body Material: | Anodized Aluminium |
| Electrical Connection: | 2P+E plug according to EN 175301-803 type B |
| Product Series: | General Purpose Solenoid Valves |
| Number of Ports: | 5 |
| Minimum Pressure Differential: | 2.5 bar |
| Coil Specifications Met: | IP65 |
| Media: | Air |
| Maximum Pressure Differential: | 10 bar |
| Actuation Type: | Pilot Operated |
| Power Consumption: | 3 W |
| Valve Type: | 5-Way |
| Port Type: | BSP |
| Orifice 1 Size: | 7 mm |
| Maximum Fluid Temperature: | n/a |
| Orifice 2 Size: | n/a |
| Flow Coefficient 1: | n/a, 1250 L/min |
| Flow Coefficient 2: | n/a |
| Coil Type: | Coil for DIN plug connection, low power, 22 mm |
| Input Voltage: | 24.0 VDC |
| Seal Material: | NBR |
