3602 14 00
DESCRIPTION:

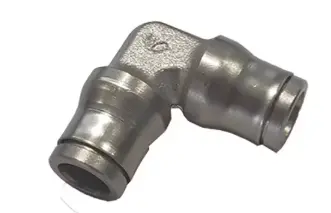

Equal Elbow
TECHNICAL DESCRIPTION:
| Connection 1 Size: | 14 mm (O.D.) |
| Connection 2 Type: | Tube |
| Seal Material: | FKM |
| Product Style: | Tube to Tube Fitting |
| Configuration: | Tube to Tube |
| Connection 2 Size: | 14 mm (O.D.) |
| For Fluid Type: | Water, Air (Compressed Air), Lubricants (Grease) |
| Weight: | 0.056 kg |
| Connection 3 Size: | n/a |
| Connection 2 Type: | Tube |
| Connection 1 Type: | Tube |
| Industry: | Industrial Processing, Food & Beverage, General Industrial, Transportation, Healthcare & Life Sciences |
| Maximum Operating Temperature: | 150 °C |
| Brand: | Parker, Legris |
| Coating: | FDA Chemical Nickel-plated |
| Configuration: | Tube to Tube |
| Minimum Operating Temperature: | -25 °C |
| Maximum Operating Pressure: | 30 bar |
| Shape: | Elbow 90° |
| Application: | General Industrial, Fluid Control, Industrial, Medical, Pneumatic, In Plant Pneumatic, Transportation, Process Control |
| Product Type: | Push-to-Connect Fittings |
| Technology: | Fluid & Gas Handling |
| Connection 2 Size: | 14 mm (O.D.) |
| Connection 1 Size: | 14 mm (O.D.) |
| Vacuum Pressure Rating: | 755 mm-Hg |
| Division: | Low Pressure Connectors Europe Division |
| Body Material: | Brass |
| Quantity per Box: | 5 |
| Specifications Met: | PED, RoHS, REACH, ATEX DI: 94/9/EC, UL 94 V-0 (Please Consult Us), FDA 21 CFR, EC RG: 1935/2004 |
| Seal Material: | FKM |
| Connection 3 Type: | n/a |
| Body Material: | Brass, FDA Chemical Nickel-plated |
| Shape: | Elbow 90° |
