3722587
DESCRIPTION:

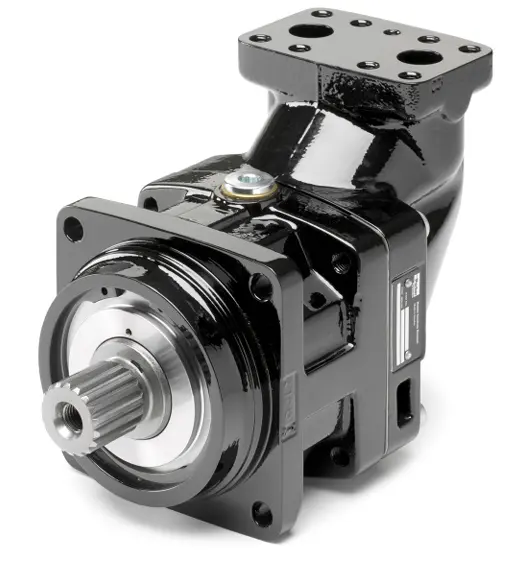

The high efficient Parker bent axis design motors, with unique spherical piston concept gives thermal shock resistance. The motors are rated up to 500 bar pressure levels, and speeds up to 7300 rpm. The well proven gear synchronization and double tapered bearing concept gives a very robust and reliable motor in demanding applications, applicable for both open and closed loop systems. Combined with our well proven track record of durable motors, we have an outstanding uptime. Sizes from 30 - 250cc
TECHNICAL DESCRIPTION:
|
Body Material |
Cast Iron |
|
Drain Option |
Yes |
|
Charge Pump Included |
No |
|
Circuit Path |
Open |
|
Configuration |
Single |
|
Control Method |
No |
|
Energy Recovery Capability |
Yes |
|
Filter Included |
NO |
|
For Fluid Type |
Standard Hydraulic Fluids |
|
Maximum Displacement |
242 cm3/rev, 14.76 inch3/rev |
|
Maximum Flow Rate |
95.83 gal/min, 363 L/min |
|
Maximum Fluid Temperature |
115 °C, 239 °F |
|
Minimum Fluid Temperature |
-40 °C, -40 °F |
|
Maximum Noise Level |
88 Dba |
|
Maximum Operating Pressure |
500 bar, 7250 psi |
|
Radial Load Capacity |
1900 kg, 4180 lb |
|
Maximum Operating Speed |
7300 RPM |
|
Maximum Kinematic Viscosity |
1000 cSt, 4664 SUS |
|
Minimum Kinematic Viscosity |
8 cSt, 37.3 SUS |
|
Weight |
77 kg Max. , 77 kg Max. , 169.4 lb Max. |
|
Media |
Hydraulic , Hydraulic Fluids |
|
Mounting Option |
SAE , ISO , CETOP , CARTRIDGE |
|
Port Connection |
SAE , ISO , BSPP |
|
Port Type |
Flange |
|
Port Location |
Side Ports , Rear Ports , Opposing Ports , Configurable |
|
Pump Type |
Piston , Fixed |
|
Direction of Rotation |
Clockwise , Counter Clockwise , Bi-Rotational |
|
Sensor Type |
Speed , Rotation |
|
Shaft Type |
SAE , ISO |
|
Thru-Drive Capability |
No |
