387TC-12
DESCRIPTION:

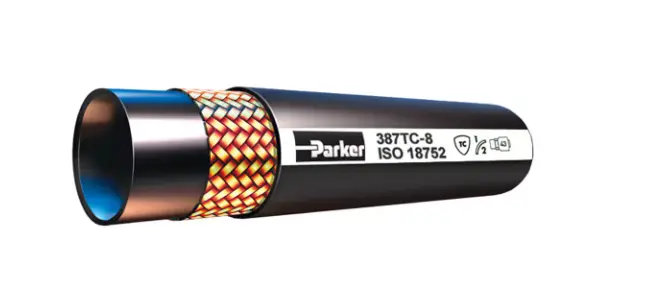

Part of Parker’s Global Core constant working pressure hose line, lightweight and flexible 387 hoses consistently deliver 3,000 PSI performance across markets and across the globe.
TECHNICAL DESCRIPTION:
| Weight: | 0.86 kg/m, 0.58 lb/ft |
| Disclaimer: | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. |
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Minimum Bend Radius: | 120 mm, 4-3/4 inch |
| Hose I.D. (size): | -12 |
| Media: | Lubricants, Petroleum Hydraulic Fluids |
| Specifications Met: | ISO 18752, Type AC, MSHA TC & ST covers only |
| Compatible Fitting: | 43 Series |
| Inside Diameter: | 3/4 inch, 19 mm |
| Application: | Lubricating Oils, Petroleum Base Hydraulic Fluids |
| Hose Reinforcement Material: | 2 Braids of Steel Wire |
| Nominal Hose Inside Diameter: | 20 mm |
| Outside Diameter: | 1.1 inch, 27.8 mm |
| Maximum Operating Pressure: | 3000 psi, 21 MPa, 210 bar |
| Hose Inner Tube Material: | Synthetic Rubber |
| Cover Material: | Synthetic Rubber Abrasion Resistant |
| Maximum Operating Temperature: | 257 °F, 125 °C |
| Hose Cover Type: | Tough Cover |
| Size: | -12 |
| Hose Cover Type: | ToughCover |
