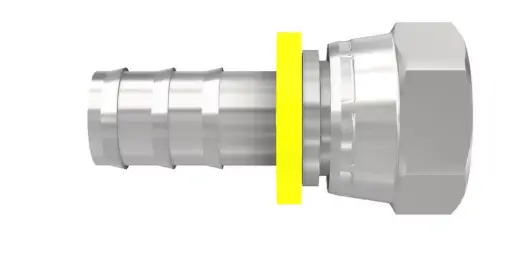

39282-8-8
DESCRIPTION:
Configure hose assemblies quickly and easily in the field without special tools with Parker’s 82 series one-piece, push-on field-attachable hydraulic fittings.
Technical Specifications
| Connection 2 Type: | Female BSP Parallel Pipe - Swivel (60° Cone) |
| Body Material: | Steel |
| Hose I.D. (size): | -8 |
| For Fluid Type: | Air (General Industrial Air), Coolants (Glycol), Fuels - Check fuel type with our catalogue chart., Lubricants (Oils), Petroleum Hydraulic Fluids (Petroleum & Water-Glycol Base), Water |
| Product Type: | Push-Lok Hose Fittings, Barbed Fittings |
| Shape: | Straight |
| Brand: | Parker |
| Connection 2 Type: | Female, BSP Parallel Pipe, Swivel, 60° Cone |
| Shape: | Straight |
| Division: | Polymer Hose Division Europe |
| Port Connection: | 1/2" |
| Industry: | Industrial Manufacturing Equipment |
| Port Type: | DKR |
| Hex Type: | Metric |
| Application: | Machine Tools, Injection Moulding Machines, Paper Machines, Transfer Lines |
| Specifications Met: | BS 5200-A |
| Technology: | Fluid & Gas Handling |
| Connection 2 Size: | 1/2"-14 inch Thread |
| Body Material: | Steel |
| Maximum Operating Pressure: | 43.0 MPa, 430 bar |
| Connection 1 Size: | 12.7 mm Hose I.D., 1/2 inch Hose I.D., -8 (Size) |
| Connection 1 Type: | Hose |
| Connection Length: | 15 mm (see drawing legend B) |
| Hex Size: | 27 mm (see drawing legend W) |
| Fitting Length: | 42 mm (see drawing legend A) |
