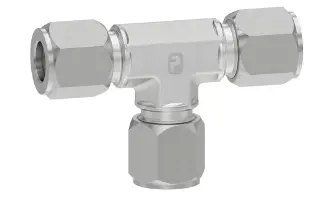

4 JBU-S
DESCRIPTION:
Parker's Ferulok 24° Flareless fittings create a visible heavy bite allowing easy inspection and a rear compression grip which firmly holds the nut and tubing, dampening the effects of vibration.
TECHNICAL DESCRIPTION:
| Body Material: | Steel |
| Connection 3 Tube O.D. (inch): | 1/4 |
| Connection 2 Tube O.D. (inch): | 1/4 |
| Connection 1 Tube O.D. (inch): | 1/4 |
| Connection Type: | Flareless Bite Type |
| Shape: | Tee |
| Connection 3 Thread Size (inch): | na |
| Connection 2 Thread Size (inch): | na |
| Connection 2 Style: | Male Flareless Bite Type |
| Specifications Met: | SAE J514 |
| Maximum Dynamic Pressure: | 5000 psi |
| Connection 4 Size: | na |
| Connection 4 Tube Outside Diameter: | na |
| O-ring: | na |
| Connection 3 Style: | Male Flareless Bite Type |
| Body Material: | Steel |
| Connection 1 Style: | Male Flareless Bite Type |
| Connection Style: | Union Tee |
