42. Part No: 1C98X-8-04
Description: Metric female swivel heavy series with O-ring. Parker Polyflex High Pressure 8X Fittings are designed to perfectly match Parker High and Ultra High-Pressure hoses, providing long service life and highest safety standards by combining always the right parts.
Product: Hose Fitting
UOM: Nos

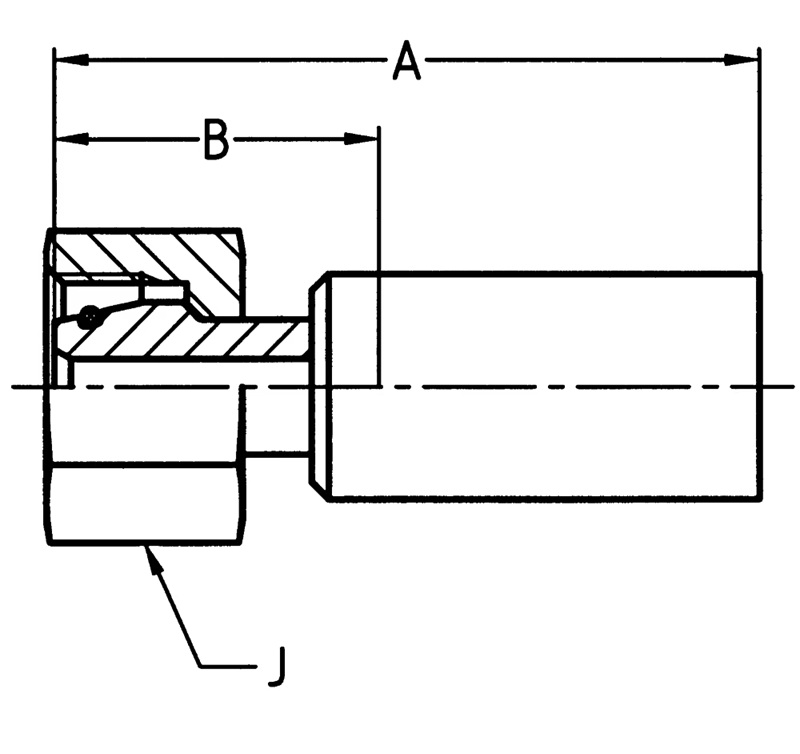

Product Image:
Technical Specifications:
| Length: | 2.1 inch, 59 mm |
| Nominal Inside Diameter: | DN 6 |
| Fitting Type: | C9 |
| Hose I.D. (mm): | 6.4 mm |
| Hose Inside Diameter: | -4 (Size), 1/4 inch |
| Connection Type: | Metric |
| Maximum Operating Pressure: | 11600 psi |
| Shape: | Straight |
| Connection Thread Size: | M16x1.5 |
| Materials of Construction: | Carbon Steel, Zinc-plated |
| Maximum Working Pressure (MPa): | 80.0 MPa |
| Product Style: | Metric Female Swivel Heavy Series with O-ring |
