421SNMSHA-32

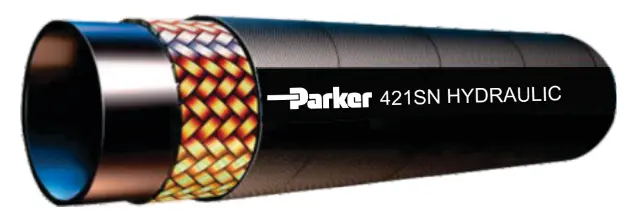

Description: Parker R1 Hose,Size - 2 Inch W.P - 40 Bar
Technical Specification:
Hose I.D : 2lnch,50.8mm
Hose R.O.D; 59.5mm
Hose O.D: 64.5mm
Working Pressure: 575psi,40bar
Minimum bend radius: 25lnch, 630mm
Approx weight: 1.51ibs/ft,2.25kg/m
Inner tube: Synthetic rubber
Reinforcement: One braids steel wire
Outer Cover: Synthetic rubber
Temp Range: -40° to 100°( -40°F to 212°F)
Impulse Cycles: specified -150000cycles,Tested upto-300000(@Full MBR)
