421SNPM-40PM

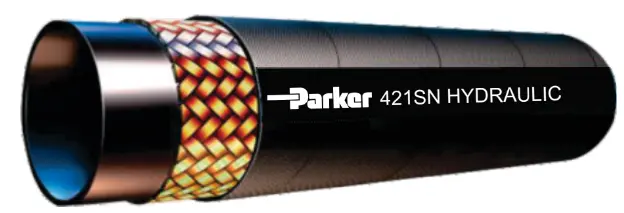

Description: Parker R1 Hose , Size - 2 1/2 Inch
Technical Specification:
Hose I.D : 2-1/2lnch,60.3mm
Hose R.O.D; 69.0mm
Hose O.D: 75.0mm
Working Pressure: 362psi,25bar
Minimum bend radius: 30lnch, 762mm
Approx weight: 1.86ibs/ft,2.77kg/m
Inner tube: Synthetic rubber
Reinforcement: One braids steel wire
Outer Cover: Synthetic rubber
Temp Range: -40° to 100°( -40°F to 212°F)
Impulse Cycles: specified -150000cycles,Tested upto-300000(@Full MBR)
