421SNPMHITEMP-4PM

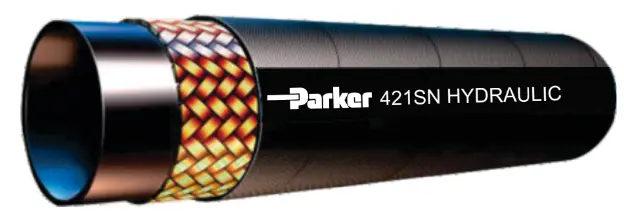

Description: Parker R2 High Temp Hose , Size - 1/4 Inch
Technical Specification:
Hose I.D : 1/4lnch,6.4mm
Hose R.O.D; 11.1mm
Hose O.D: 13.4mm
Working Pressure: 3250psi,225bar
Minimum bend radius: 4.0lnch, 100mm
Approx weight: 0.15ibs/ft,0.23kg/m
Inner tube: Synthetic rubber
Reinforcement: One braids steel wire
Outer Cover: Synthetic rubber
Temp Range: -40° to 135°( -40°F to 275°F)
