421SNPMHITEMP-4PM

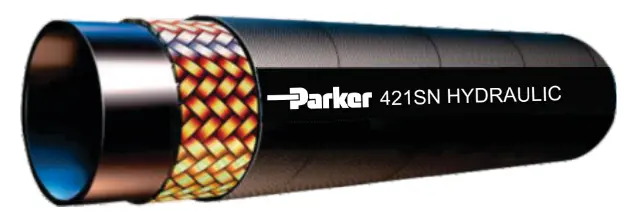

Description: Parker R2 High Temp Hose , Size - 1/4 Inch
Technical Specification
- Hose I.D : 1/4lnch / 6.4mm
- Hose R.O.D : 11.1mm
- Hose O.D : 13.4mm
- Working Pressure : 3250psi / 225bar
- Minimum bend radius : 4.0lnch / 100mm
- Approx weight : 0.15lbs/ft / 0.23kg/m
- Inner tube : Synthetic rubber
- Reinforcement : One braids steel wire
- Outer Cover : Synthetic rubber
- Temp Range : -40° to 135°( -40°F to 275°F)
- Impulse Cycles : specified -150000cycles,Tested upto-300000(@Full MBR)
