421SNPMHITEMP-8PM

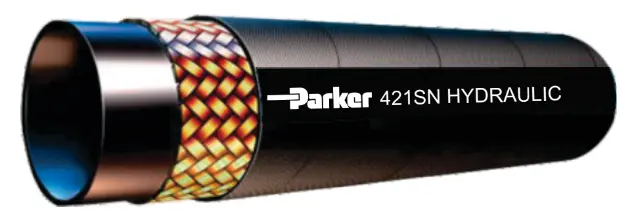

Description: Parker R2 High Temp Hose , Size - 1/2 Inch
Technical Specification
- Hose I.D : 1/2lnch / 12.7mm
- Hose R.O.D : 18.2mm
- Hose O.D : 20.7mm
- Working Pressure : 2325psi / 160bar
- Minimum bend radius : 7.0lnch / 180mm
- Approx weight : 0.34lbs/ft / 0.50kg/m
- Inner tube : Synthetic rubber
- Reinforcement : One braids steel wire
- Outer Cover : Synthetic rubber
- Temp Range : -40° to 135°( -40°F to 275°F)
- Impulse Cycles : specified -150000cycles,Tested upto-300000(@Full MBR)
