43. Part No: 5-6C4OMXS
Description: Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.
Product: Adapter
UOM: Nos

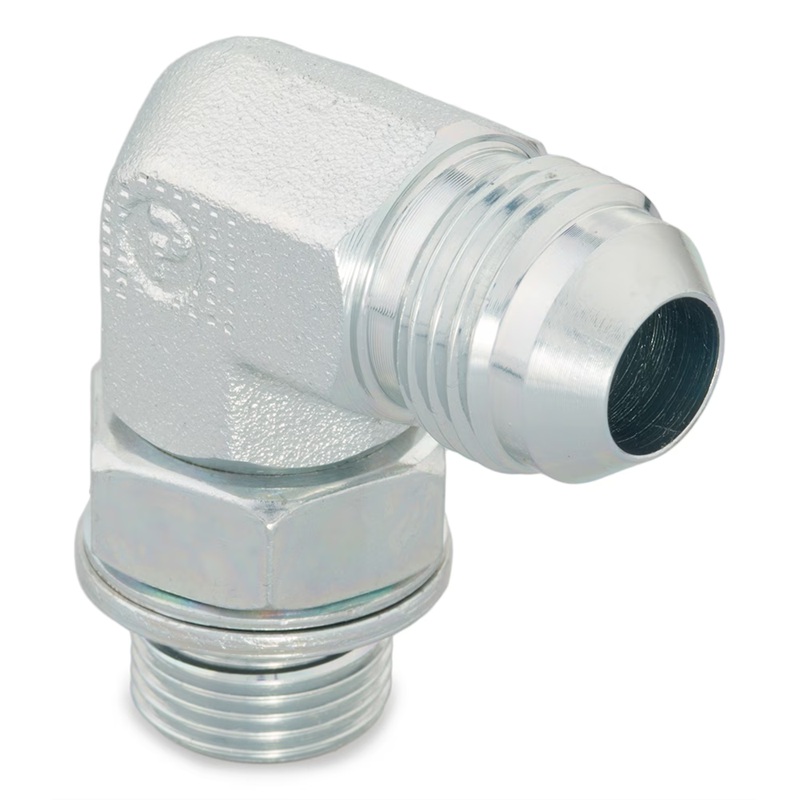

Product Image:
Technical Specifications:
| Connection Type: | 37° Flare, Tube to BSPP-ORR with Metric Hex |
| Specifications Met: | SAE J514 |
| Maximum Dynamic Pressure: | 3600 psi |
| Shape: | 90° Elbow |
| Connection 1 Size: | Male 37° Flare |
| Connection 1 Tube Outside Diameter: | 5/16 inch, 8 mm |
| Connection 2 Size: | Male BSPP O-Ring Retaining Ring |
| Connection 2 Thread Size: | 3/8-19 inch |
| O-Ring Material: | 90 Durometer Nitrile |
| Body Material: | Steel |
