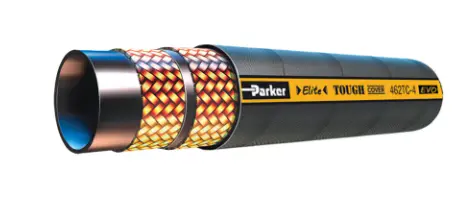

462TC-4
WDESCRIPTION:
Parker compact hose 462 EVO with reduced bend radius fulfills the growing demand for space savings and compact applications. The hose range is compatible with No-Skive fittings in steel and stainless steel.
TECHNICAL DESCRIPTION:
| Minimum Bend Radius: | 50 mm |
| Size: | -4 |
| Hose Cover Type: | Tough Cover |
| Brand: | Parker |
| Media: | Coolants (Glycol), Fuels - Check fuel type with our catalogue chart., Lubricants (Oils), Petroleum Hydraulic Fluids (Petroleum & Water-Glycol Base) |
| Specifications Met: | EN 857, Type 2SC, ISO 11237, Type 2SC |
| Compatible Fitting: | 46 Series, 48 Series |
| Inside Diameter: | 1/4 inch, 6.4 mm |
| Maximum Operating Temperature: | 100 °C (Water 85°C / Air 70°C), 212 °F (Water 185°F / Air 158°F) |
| Application: | Medium Pressure Hydraulics (all markets) |
| Hose Reinforcement Material: | 2 Braids of High Tensile Wire |
| Outside Diameter: | 0.527 inch, 13.4 mm |
| Division: | Polymer Hose Division Europe |
| Industry: | General Industrial, Off-road Machinery |
| Technology: | Fluid & Gas Handling |
| Product Type: | Hydraulic Hose, Specialty Hose |
| Product Style: | Elite No-Skive Compact Tough Cover |
| Maximum Operating Pressure: | 6160 psi, 42.5 MPa, 425 bar |
| Hose I.D. (size): | -4 |
| Minimum Bend Radius: | 50 mm, 1.969 inch |
| Design Factor: | 4:1 |
| Minimum Operating Temperature: | -40 °C |
| Cover Material: | High Abrasion Resistant MSHA approved |
| Hose Inner Tube Material: | Nitrile Butadiene Rubber (NBR) |
| Weight: | 0.30 kg/m, 0.20 lb/ft |
