47. Part No: 8-12 F5OX-S
Description: Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.
Product: Adapter
UOM: Nos

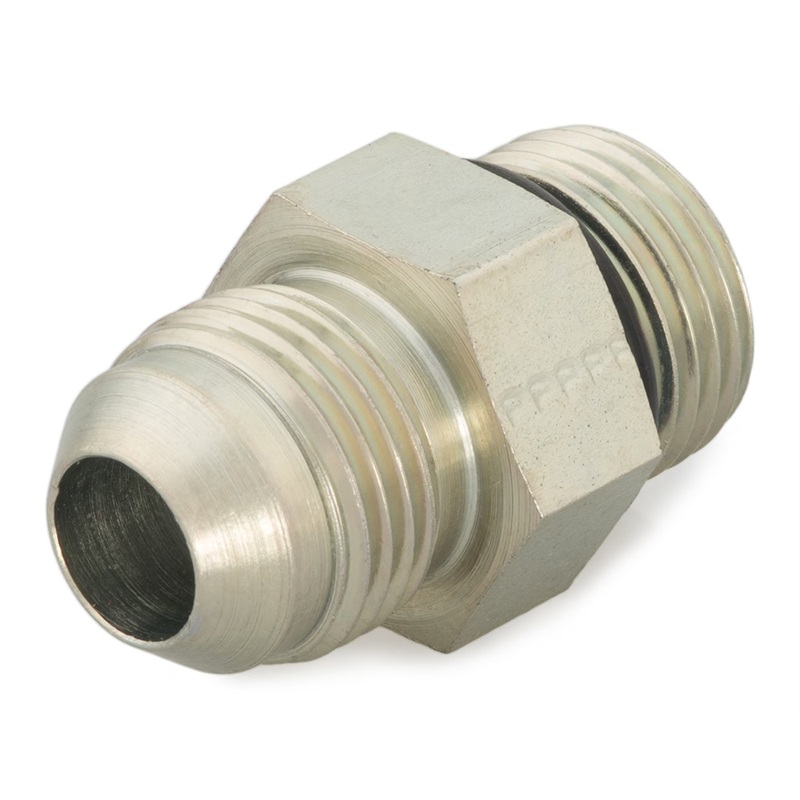

Product Image:
Technical Specifications:
| Connection Type: | 37° Flare, Tube to SAE-ORB |
| Specifications Met: | SAE J514 |
| Maximum Dynamic Pressure: | 5000 psi |
| Shape: | Straight |
| Connection 1 Size: | Male 37° Flare |
| Connection 1 Tube Outside Diameter: | 1/2 inch, 12 mm |
| Connection 2 Size: | Male SAE-ORB |
| Connection 2 Thread Size: | 1 1/16-12 inch |
| O-Ring Material: | 90 Durometer Nitrile |
| Body Material: | Steel |
