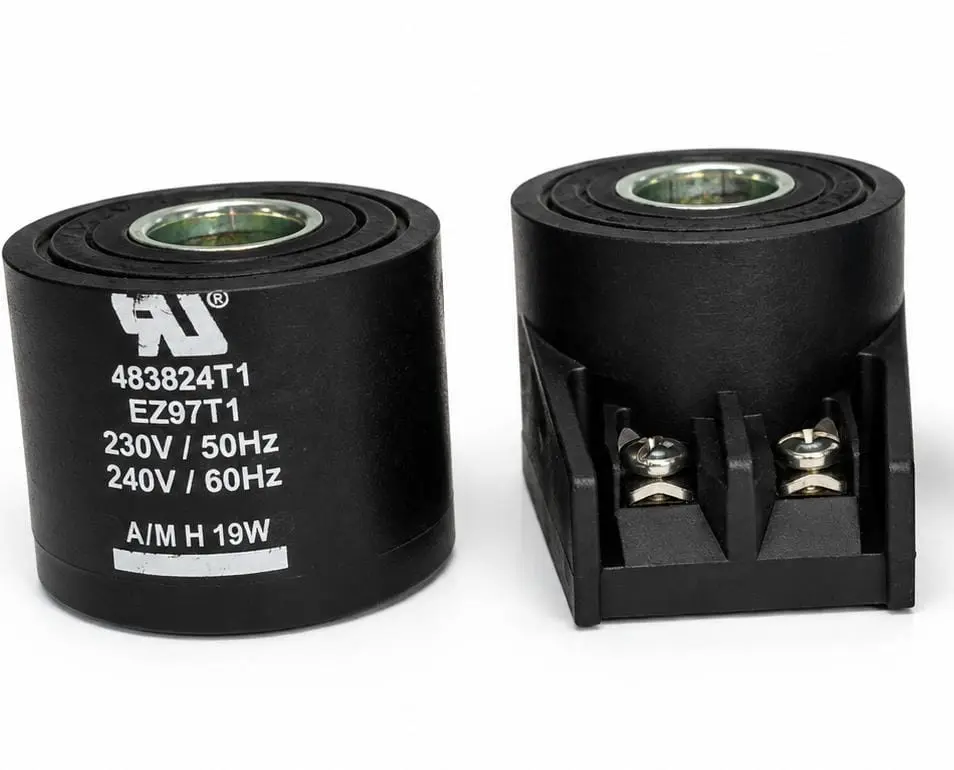

483824T1
DESCRIPTION:
The Parker coil 483824T1 is part of Parker’s G Series solenoid valves, designed for industrial and process applications. It is a 2/2-way, normally closed valve with a brass body, FKM seals, and a coil rated at 19 W, suitable for oils and fluids under moderate pressure and temperature ranges
TECHNICAL DESCRIPTION:
| Attribute | Specification |
|---|---|
| Valve Type | 2/2-Way, Normally Closed |
| Actuation Type | Magnalift / Pilot Operated |
| Port Size | 1/2" G |
| Port Type | Pipe Mounting |
| Body Material | Brass |
| Seat Material | Brass |
| Seal Material | FKM (fluoroelastomer) / Ruby options |
| Orifice Size | 15 mm |
| Flow Coefficient (Kv) | 50 L/min (≈ 3–3.6 m³/h depending on variant) |
| Power Supply Voltage | 230–240 V AC, 50–60 Hz |
| Coil Power Consumption | 19 W |
| Coil Temperature Range | -40 °C to +50 °C |
| Insulation Class | H (180 °C) |
| Minimum Operating Pressure | 0 bar |
| Maximum Operating Pressure | 5–30 bar (depending on variant) |
| Minimum Fluid Temperature | 0 °C (some variants -30 °C) |
| Maximum Fluid Temperature | 140–160 °C |
| Certifications | CE, EAC, DIN-EN-ISO 23553-1 (oil burner approval) |
| Applications Media | Oils, air, gases, water, light oil |
