487TC-12-DL
DESCRIPTON:

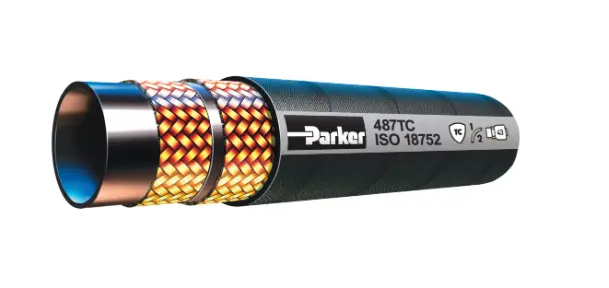

Parker’s 487 Global Core hose offers high performance, low-force-to-flex, and constant working pressures of 4,000 psi.
TECHNICAL DESCRIPTION:
| Minimum Operating Temperature: | -40 °C, -40 °F |
| Hose I.D. (size): | -12 |
| Media: | Lubricants, Petroleum Hydraulic Fluids |
| Specifications Met: | ISO 18752, Type AC, MSHA TC, ST & CP covers only |
| Compatible Fitting: | 43 Series |
| Inside Diameter: | 3/4 inch, 19 mm |
| Application: | Lubricating Oils, Petroleum Base Hydraulic Fluids |
| Hose Reinforcement Material: | 2 Braids of Steel Wire |
| Weight: | 0.86 kg/m, 0.58 lb/ft |
| Nominal Hose Inside Diameter: | 20 mm |
| Outside Diameter: | 1.100 inch, 27.8 mm |
| Maximum Operating Pressure: | 4000 psi, 28 MPa, 280 bar |
| Hose Inner Tube Material: | Synthetic Rubber |
| Cover Material: | Synthetic Rubber Abrasion Resistant |
| Minimum Bend Radius: | 4-3/4 inch, 120 mm |
| Maximum Operating Temperature: | 257 °F, 125 °C |
| Size: | -12 |
| Hose Cover Type: | ToughCover |
