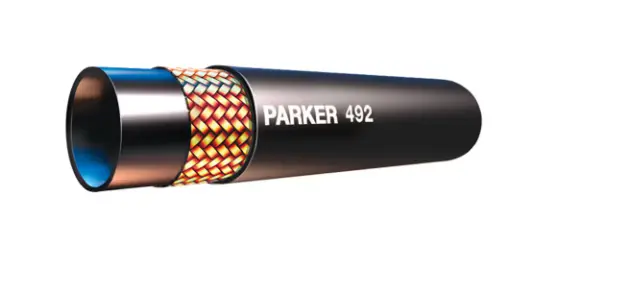

492-4-RL
DESCRIPTION:
Parker Elite No-Skive Compact hose 492 has been designed for a working pressure up to 28,0 MPa and temp. range from -40 °C up to +100 °C. The hose range is compatible with No-Skive fittings in steel and stainless steel.
TECHNICAL DESCRIPTION:
| Hose Cover Type: | Standard |
| Brand: | Parker |
| Specifications Met: | EN 857, Type 1SC, ISO 11237, Type 1SC |
| Compatible Fitting: | 46 Series |
| Inside Diameter: | 1/4 inch, 6.4 mm |
| Maximum Operating Temperature: | 100 °C (Water 85°C / Air 70°C), 212 °F (Water 185°F / Air 158°F) |
| Application: | Medium Pressure Hydraulics (all markets) |
| Hose Reinforcement Material: | 1 Braid of High Tensile Steel Wire |
| Outside Diameter: | 0.453 inch, 11.5 mm |
| Division: | Polymer Hose Division Europe |
| Media: | Air (General Industrial Air), Coolants (Glycol), Fuels - Check fuel type with our catalogue chart., Lubricants (Oils), Petroleum Hydraulic Fluids (Petroleum & Water-Glycol Base), Water |
| Industry: | General Industrial, Off-road Machinery |
| Technology: | Fluid & Gas Handling |
| Product Type: | Hydraulic Hose |
| Product Style: | Elite No-Skive Compact |
| Hose I.D. (size): | -4 |
| Maximum Operating Pressure: | 4060 psi, 28 MPa, 280 bar |
| Minimum Bend Radius: | 75 mm, 2.953 inch |
| Design Factor: | 4:1 |
| Minimum Operating Temperature: | -40 °C |
| Cover Material: | Synthetic Rubber |
| Hose Inner Tube Material: | Nitrile Butadiene Rubber (NBR) |
| Weight: | 0.18 kg/m, 0.12 lb/ft |
