52. Part No: 3116 08 00
Description: The LF 3000® push-in fittings range includes banjo, oscillating, and modular multiport functions offering multiple configurations. Robust, lightweight, and compact thus connectors allow you to optimize the design of your pneumatic equipment.
Product: Push-In Fitting
UOM: Nos

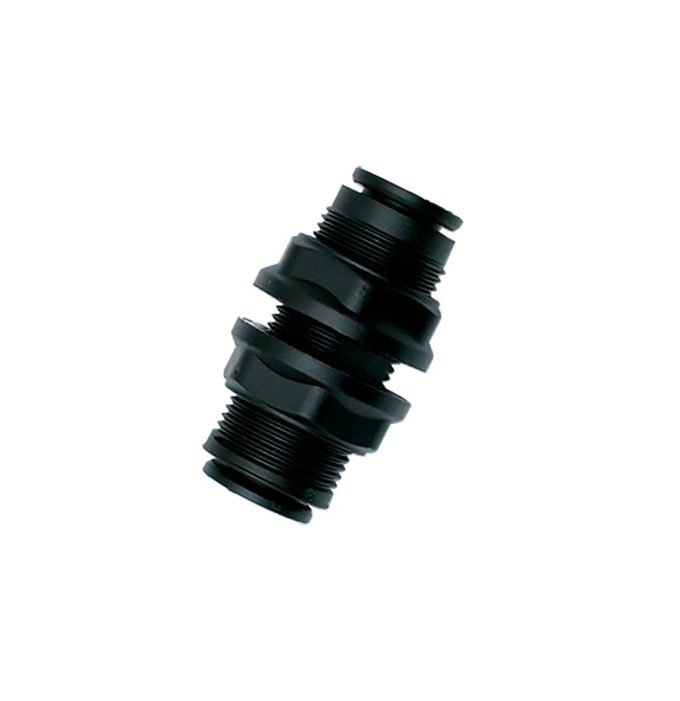

Product Image:
Technical Specifications:
| Product Style: | Bulkhead |
| Configuration: | Tube to Tube |
| Connection 1 Size: | 8 mm (O.D.) |
| Connection 2 Size: | 8 mm (O.D.) |
| Brand: | Parker, Legris |
| Division: | Low Pressure Connectors Europe Division |
| Industry: | Industrial Manufacturing Equipment, Industrial Processing, Chemicals Processing, Electronics, Semiconductor, Power Generation, Renewable Energy, Transportation, Off-road Machinery |
| Application: | Robotics, Automotive, Pneumatics, Textile, Packaging, Vacuum |
| Technology: | Fluid & Gas Handling |
| Product Type: | Pneumatic Push-In Fittings - LF 3000® |
| Product Style: | Bulkhead |
| Product Series: | LF 3000® |
| Vacuum Pressure Rating: | 755 mm-Hg |
| Shape: | Straight |
| Configuration: | Tube to Tube |
| Connection 1 Type: | Tube |
| Connection 1 Size: | 8 mm Tube O.D. |
| Connection 2 Type: | Tube |
| Connection 2 Size: | 8 mm Tube O.D. |
| Hex Size: | 18 |
| Hex Type: | Hexagon Metric |
| Maximum Operating Temperature: | 80 °C |
| Minimum Operating Temperature: | -20 °C |
| For Fluid Type: | Air (Compressed Air), Other Fluids: Please Consult Us |
| Body Material: | Technical Polymer |
| Seal Material: | NBR |
| Gripping Ring Material: | Stainless Steel |
| Weight: | 0.007 kg |
| Quantity per Box: | 10 |
| Shape: | Straight |
