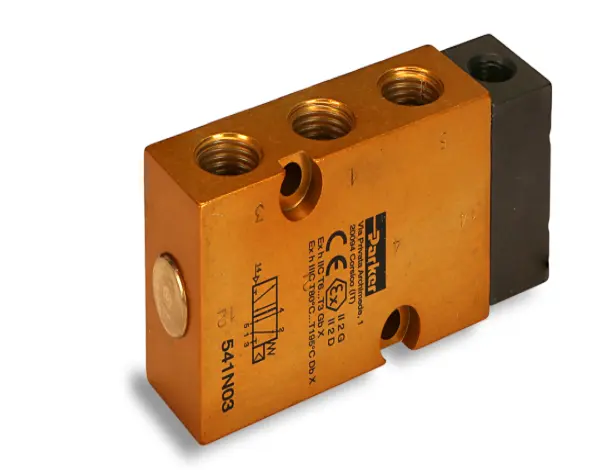

541N03
DESCRIPTION:
N "High Flow" NAMUR Series is a full range of NAMUR indirect operated solenoid valves, from 1/4" to 1/2", solenoid or air operated with a borad range of functions including 3/2, 5/2, 5/3.
TECHNICAL DESCRIPTION:
| Function: | Spring return |
| Flow Coefficient 1: | 1250 l/min |
| Insulation Class: | - |
| Power Supply Voltage: | - |
| Coil Temperature Range: | - |
| Valve Type: | 5/2 Way |
| Port Size: | 1/4" G |
| Actuation Type: | Air operated |
| Maximum Fluid Temperature: | 50 °C |
| Port Type: | Namur |
| Body Material: | Anodized Aluminum |
| Media: | Dry or Lubricated Air |
| Orifice Size: | 7 mm |
| Minimum Operating Pressure: | 2.5 bar |
| Maximum Operating Pressure: | 10 bar AC/DC |
| Minimum Fluid Temperature: | -20 °C |
| Seal Material: | NBR |
| Coil Power Consumption: | n/a |
| Electrical Connection: | n/a |
| Coil Specifications Met: | n/a |
| Specifications Met: | - |
| ATEX Specifications Met: | n/a |
