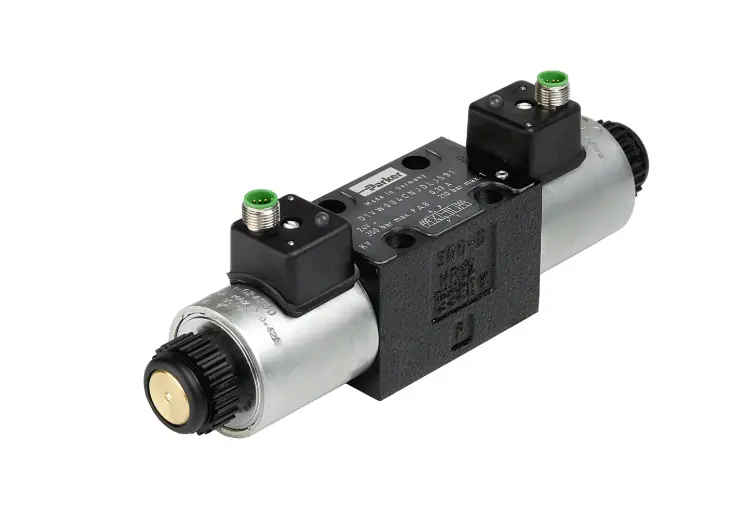

548N - 8
DESCRIPTION:
The directional control valve series D1VW 8 Watt is based on the standard D1VW design. The low watt, low current solenoid (< 0.5 A) of this on/off valve allows a direct connection to a PLC.
Technical Specifications
| Product Series: | Directional control valve |
| Port Connection: | NG06 / CETOP 03 |
| Mounting Type: | Subplate mounting |
| Mounting Position: | Unrestricted, preferably horizontal |
| Operation Type: | Direct |
| Actuation Type: | Solenoid |
| Input Voltage: | 24 VDC |
| Power Consumption: | 8 W |
| Function: | 2-way, 3-way |
| Maximum Operating Pressure: | 350 bar |
| Maximum Flow Rate: | 60 L/min |
| Maximum Operating Temperature: | 60 °C |
| Minimum Operating Temperature: | -25 °C |
| For Fluid Type: | Hydraulic oil according to DIN 51524, Water glycol |
| Seal Material: | NBR, FPM |
| Weight: | With 1 solenoid: 1.5, with 2 solenoids: 2.1 kg |
| Body Material: | Cast iron |
| Maximum Ambient Temperature: | 60 °C |
| Minimum Ambient Temperature: | -25 °C |
| Configuration: | Directional spool valve |
| Minimum Fluid Temperature: | -25 NBR, -20 FPM |
| Maximum Fluid Temperature: | 70 °C |
| Maximum Kinematic Viscosity: | 400 cSt |
| Minimum Kinematic Viscosity: | 2.8 cSt |
| Filter Efficiency Rating: | ISO 4406; 18/16/13 |
