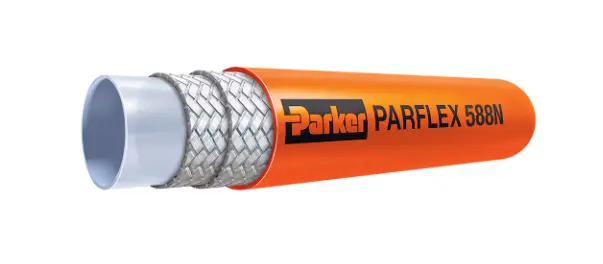

588N-12
DESCRIPTION:
The 580N/588N High Pressure Flexible Hose meets SAE 100R8 specifications and offers a smaller O.D. and lighter weight than the 100R2, replacing 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required.
TECHNICAL DESCRIPTION:
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Hose Inner Tube Material: | Polyamide (PA), Non-Conductive |
| Hose I.D. (inch): | 3/4 |
| Media: | Chemicals, Lubricants (Oils), Petroleum Hydraulic Fluids, Water |
| Maximum Operating Pressure: | 2250 psi, 15.5 MPa, 155 bar |
| Maximum Operating Temperature: | 212 °F, 100 °C |
| Minimum Bend Radius: | 8 inch, 203 mm |
| Compatible Fitting: | 56 Series |
| Application: | Fluid Handling, Hydraulics, Manufacturing, Industrial, Agriculture Equipment, Construction Equipment, Forestry |
| Inside Diameter: | 3/4 inch, 19 mm |
| Weight: | 0.23 lb/ft, 0.35 kg/m |
| Cover Material: | Polyurethane |
| Hose Reinforcement Material: | Fiber |
| Outside Diameter: | 1.150 inch, 29.2 mm |
| Product Style: | Non-Conductive |
| Size: | -12 |
| Hose Type: | Non Conductive |
