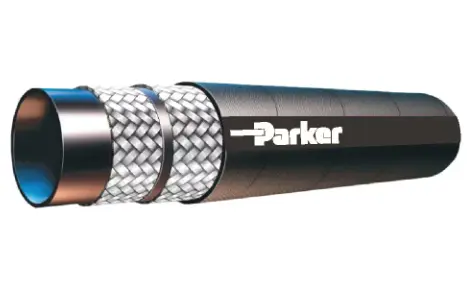

601PM-32PM
DESCRIPTION:
601PM hose meets EN 854 specification with Ozone resistant cover and is compatible with all petorleum base oils & fluids.
TECHNICAL SPECIFICATION:
| Weight: | 1.35 kg/m |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C, 100 °C |
| Application: | Hydraulic Oil Lines |
| Hose I.D. (inch): | 2 |
| Media: | Petroleum Hydraulic Fluids |
| Specifications Met: | EN 854, Type R3 |
| Inside Diameter: | 50.8 mm |
| Outside Diameter: | 64 mm |
| Maximum Operating Pressure: | 215 psi |
| Minimum Bend Radius: | 410 mm |
