611HT-16
DESCRIPTION:

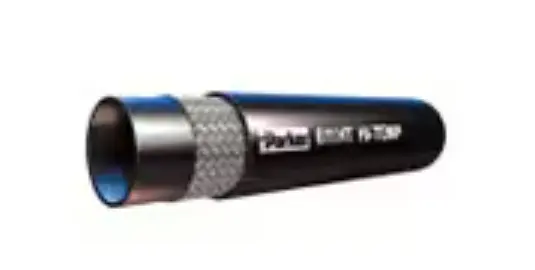

High Temperature Hose SAE J517 100R6 / EN 854 Type R6 specifications. Sizes range from ¼” to ¾” in diameter to fit the requirements of various markets.
TECHNICAL DESCRIPTION:
| Hose Inside Diameter: | -16.0 |
| Media: | Coolants, Fuels, Lubricants, Petroleum Hydraulic Fluids |
| Specifications Met: | EN 854, Type R6, SAE J517 and 100R6 |
| Compatible Fitting: | HY Series |
| Maximum Operating Pressure: | up to 28, up to 2.8, up to 400 |
| Weight: | 0.13 to 0.36, 0.09 to 0.25 |
| Inside Diameter: | 1/4 to 3/4, 6.2 to 18.8 |
| Application: | Agriculture Equipment, Forestry, Hydraulics, Transportation |
| Hose Reinforcement Material: | 1 Braid of Fiber |
| Vacuum Pressure Rating: | 18 to 28, 457 to 711 |
| Size: | -4 to -12 |
| Minimum Bend Radius: | 2-1/2 to 6, 65 to 150 |
| Outside Diameter: | 0.47 to 1.00, 11.9 to 25.4 |
| Hose Inner Tube Material: | PKR® Rubber |
| Cover Material: | Synthetic Rubber MSHA approved |
| Minimum Operating Temperature: | -55, -48 |
| Maximum Operating Temperature: | 302, 150 |
| Hose Cover Type: | Synthetic Rubber MSHA Accepted |
