6392V

DESCRIPTION:

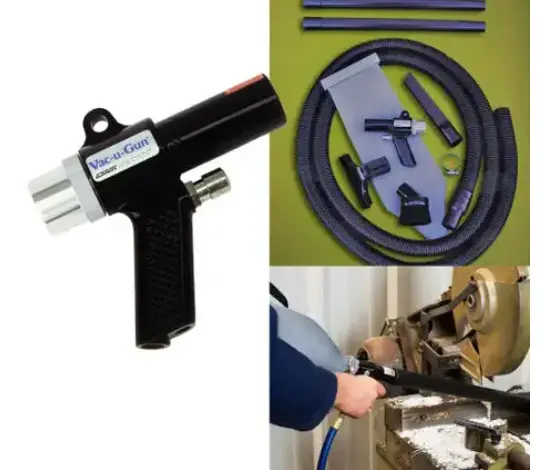

The EXAIR Model 6392 Vac-u-Gun All Purpose System provides the components required to use the Vac-u-Gun as a lightweight, portable vacuum, transfer tool or blow gun for small tasks. Die-cast construction with no moving parts reduces maintenance and extends service life while offering a low-cost solution for industrial housekeeping and material handling.

TECHNICAL DESCRIPTION:

• Model / SKU: 6392
• Commercial name: Model 6392 (Vac-u-Gun All Purpose System)
• Construction: Die-cast; no moving parts
• Recommended Pressure Supply: 80-100 PSIG (5.5 - 6.9 BAR)
• Tested Pressure (data): 80 PSIG (5.5 BAR)
• Air Consumption: 13 SCFM (368 SLPM)
• Vacuum: -29.5 "H2O (-7 kPa)
• Force: 9 Ozs (255 grams)
• Inlet: 1/4 NPT
• Sound Level: 84 dBA (tested in vacuum mode with bag attached)
• Included hose: 10' (3 m) of vacuum hose at 1-1/2" (38 mm) I.D. (in All Purpose System)
• Includes: reusable bag, brush, crevice tool, skimmer tool, two extension wands
