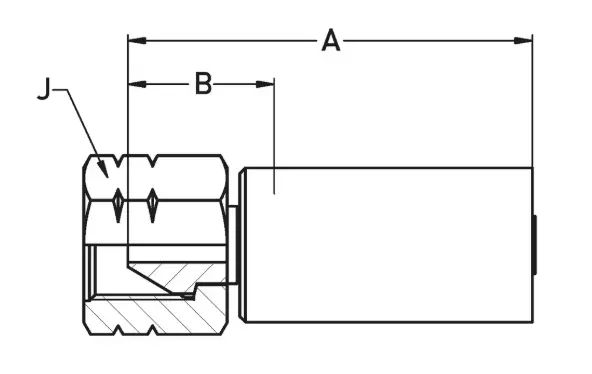

6AYLX-8-5C
Ultra High Pressure Hose Fittings
Technical Specifications
| Product Style: | Female Type “M” Swivel Fitting |
| Connection Thread Size: | 9/16"-18 |
| Hose I.D. (inch): | 5/32" |
| Shape: | Straight |
| Thread Type: | UNF |
| Hose I.D. (mm): | 4 mm |
| Fitting Type: | AY |
| Hose I.D.: | DN 4 |
| Hose I.D. (size): | -25 |
| Length (mm): | 64 mm |
| Maximum Working Pressure (MPa): | 301.0 MPa |
| Maximum Working Pressure (psi): | 43645 psi |
| Length (inch): | 2.5" |
