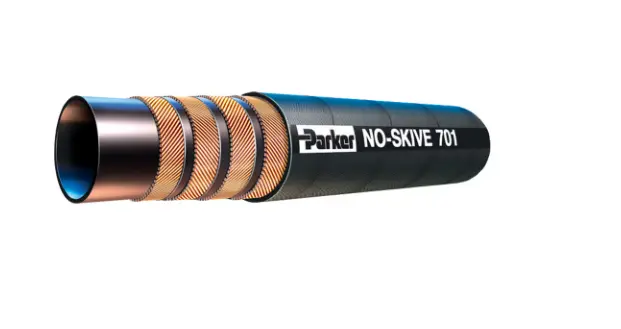

701MSHA-8
DESCRIPTION:
This product is no longer available - please refer to the “Related Products” section of this page for alternative products, or contact us for further assistance.
TECHNICAL DESCRIPTION:
| Hose I.D. (inch): | 1/2 |
| Minimum Operating Temperature: | -40 °F, -40 °C |
| Hose I.D. (mm): | 12.7 |
| Hose Cover Type: | Standard |
| Brand: | Parker |
| Specifications Met: | EN 856, Type 4SP, ISO 3862, Type 4SP |
| Compatible Fitting: | 70 Series |
| Inside Diameter: | 1/2 inch, 12.7 mm |
| Maximum Operating Temperature: | 100 °C (Water 85°C / Air 70°C), 212 °F (Water 185°F / Air 158°F) |
| Application: | High Pressure Hydraulics |
| Hose Reinforcement Material: | 4 Spirals of High Tensile Steel Wire |
| Outside Diameter: | 0.968 inch, 24.6 mm |
| Division: | Polymer Hose Division Europe |
| Media: | Air (General Industrial Air), Coolants (Glycol, Water-Glycol), Lubricants (Oils), Petroleum Hydraulic Fluids, Water |
| Industry: | Industrial Manufacturing Equipment, Off-road Machinery, Transportation |
| Technology: | Fluid & Gas Handling |
| Product Type: | Hydraulic Hose |
| Product Style: | No-Skive Multispiral |
| Maximum Operating Pressure: | 6000 psi, 41.5 MPa, 415 bar |
| Minimum Bend Radius: | 230 mm, 9.055 inch |
| Design Factor: | 4:1 |
| Materials of Construction: | Rubber |
| Cover Material: | Synthetic Rubber |
| Hose Inner Tube Material: | Synthetic Rubber |
| Weight: | 0.93 kg/m, 0.62 lb/ft |
