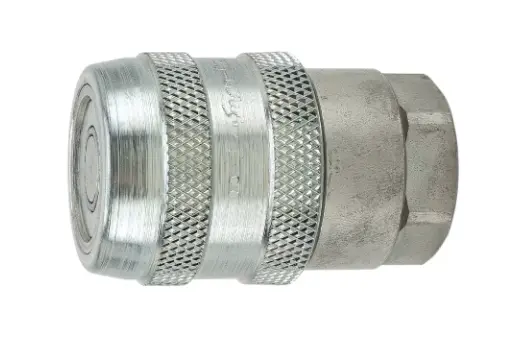

71-3C4-4F
DESCRIPTION:
Snap-tite 71 series steel coupler
TECHNICAL DESCRIPTION:
| Body Material: | Steel |
| Coupling Half: | Female Coupler |
| Application: | Hydraulics |
| Maximum Operating Temperature: | 250 °F |
| Maximum Operating Pressure: | 10000 |
| Body Material: | Steel |
| Product Type: | Push to Connect |
| Minimum Operating Temperature: | -40 °F |
| Body Size (inch): | 1/4 |
| Valve Type: | Non-spill |
| Connection Type: | Female NPTF |
| Connection Thread Size (inch): | 1/4 - 18 |
| Seal Material: | Nitrile |
| Hex Size: | 0.94 inch |
| Plating Type: | Zinc with Clear Trivalent Chromate |
