711510-4-VIT-AV

DESCRIPTION:

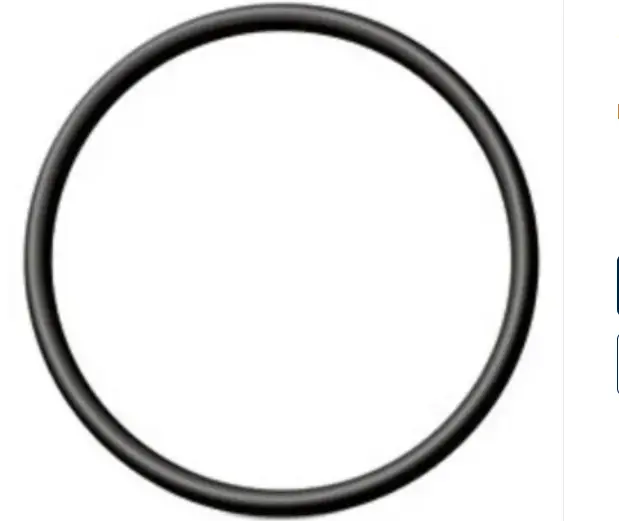

Flange Code 61/62 O-ring, ID - 32.92mm Width - 3.53mm, Material: Viton

TECHNICAL DESCRIPTION:

Outside Diameter: 1.554 inches minimum and 1.594 inches maximum

Temp Rating: -30.0 fahrenheit and 250.0 fahrenheit

Cross-Sectional Height: 0.135 inches minimum and 0.143 inches maximum

Center Hole Diameter: 1.290 inches minimum and 1.302 inches maximum

Elongation Percentage: 160 maximum

Hardness Rating: 90.0 shore durometer a nominal

Material: rubber
