71315SN1KNJ1N0L111C2
DESCRIPTION:

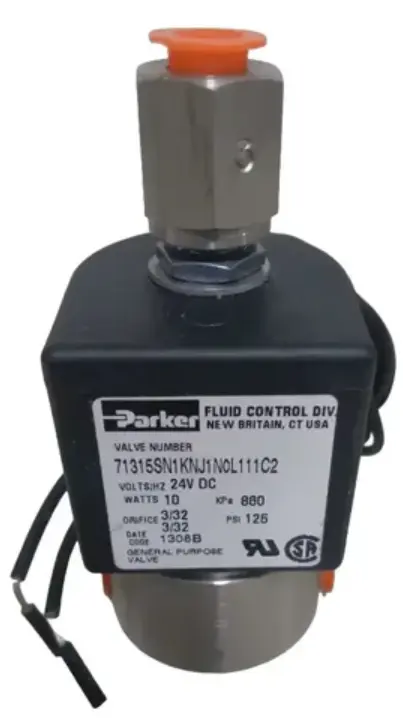

Parker 71315SN1KNJ1N0L111C2 is a Skinner Series 3-way, normally closed, direct-acting solenoid valve manufactured by Parker Hannifin Fluid Control Division. It is designed for controlling air, inert gases, water, and light oil in industrial automation, pneumatic control, HVAC, and process control applications
TECHNICAL DESCRIPTION:
| Parameter | Specification |
|---|---|
| Part Number | 71315SN1KNJ1N0L111C2 |
| Product Family | Parker Skinner 7131 Series |
| Valve Function | 3-Way, Normally Closed |
| Operating Principle | Direct Acting Solenoid |
| Port Connection | 1/8" NPT |
| Orifice Size | 3/32 in (2.38 mm) |
| Flow Coefficient (Cv) | 0.170 |
| Maximum Operating Pressure | 125 psi |
| Minimum Pressure Differential | 0 psi |
| Coil Voltage | 24 VDC |
| Power Consumption | 10 Watts |
| Seal Material | NBR (Nitrile Rubber) |
| Maximum Media Temperature | 185°F (85°C) |
| Compatible Media | Air, inert gases, water, light oil |
| Mounting Position | Any position (coil upright preferred) |
| Enclosure Type | Lead Wire Connection |
