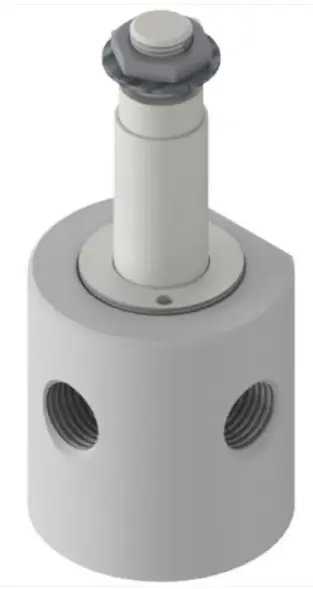

7131KBN2JV00

DESCRIPTION:

3-way 2-positions (3/2) Normally Closed (NC) pneumatic direct-acting vlv. pressure vessel alone (Cv 0.17 inlet / Cv 0.24 exhaust) - Parker Hannifin (Skinner 7000 series) - 1/4" NPT threaded ports - Brass vessel / FKM seal - Individual in-line installation - plunger return spring - for air / inert gas / water / light oil media

TECHNICAL DESCRIPTION:

Primary brand: Parker Hannifin

Main function: Valve (Electrically actuated)

Product series / family name: Valves (Pneumatic) > Solenoid-operated

Sub-range name: Skinner 7000 series

Functions: Pneumatic direct-acting vlv. pressure vessel alone

Valve function: 3-way 2-positions (3/2) Normally Closed (NC) plunger return spring

Design: for air / inert gas / water / light oil media

Flow: Cv 0.17 inlet, Cv 0.24 exhaust

Pressure: 0psi / 0bar minimum differential operating pressure rated differential operating pressure depends on solenoid voltage

Temperature: +85°C / +185°F max. media temperature

Diameter: 5/64" inlet orifice 3/32" exhaust orifice

Connection type: 1/4" NPT threaded ports

Mounting mode: Individual in-line installation

Material: Brass vessel FKM seal

Ambient air temperature for operation: max. +150°F / +65 °C
