731MSHA-12
DESCRIPTION:
Parker 731 Hydraulic EN 856 4SH Hoses
TECHNICAL DESCRIPTION:
- Model: Parker 731 Hydraulic EN 856 4SH
- Hose Inside Diameter: 3/4″
- Max. Working Pressure: 6000 psi
- Min. Bend Radius: 280 mm
- Specification Met: EN 856 4SH
- Mating End Fitting Series: Parkrimp 73 Series
- Inner Tube: Synthetic Rubber
- Reinforcement: Four Spiral Steel Wire
- Cover: Synthetic rubber
- Application: Petroleum base hydraulic fluids and lubricating oils
- Temperature: -40˚C to +100˚C
- Impulse Test: Specified- 400,000 cycles, Tested up to – 800,000 cycles.

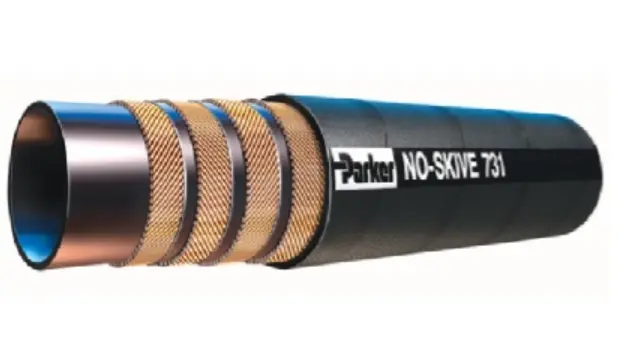

- Picture for illustration purposes only
- Download Parker 731MSHA Series
